300L Alu

Capacity and dimensions

• Usable volume: 300 L.
• Box payload: 100 kg.
• Gross vehicle weight rating (GVWR): 364 kg.
• Overall vehicle dimensions: 2.35 m (length) x 0.90 m (width) x 0.98 m (height of bare chassis).
• Vehicle weight: 65 kg.
• Maximum gradient: Valeo: 0 to 18% / Bafang: 0 to 15%.
• Turning radius: 160 cm.
• Ground clearance: 150 mm.

Motor and power

• Available motors: Valeo Cyclee system (with integrated 7-speed automatic gearbox) or Bafang M500-510 (5-speed manual gearbox).
• Power and speed: 250 W motor delivering powerful torque of 130 Nm (Valeo) or 95 Nm (Bafang). Maximum assisted speed is 25 km/h.
• Battery (Valeo): Ultra r1240 lithium-ion technology providing 1254 Wh. 40 km range. Full recharge time is 8 to 9 hours (designed for 600 cycles).
• Battery (VUF): 1440 Wh lithium-ion, offering a range of approximately 50 km. Designed for a lifespan of up to 2500 charge cycles (compatible with Bafang and Valeo).
• Battery (Bafang): 450 or 600 Wh lithium-ion. 20 to 30 km range. Full recharge time is 4 to 5 hours (designed for 1000 cycles).

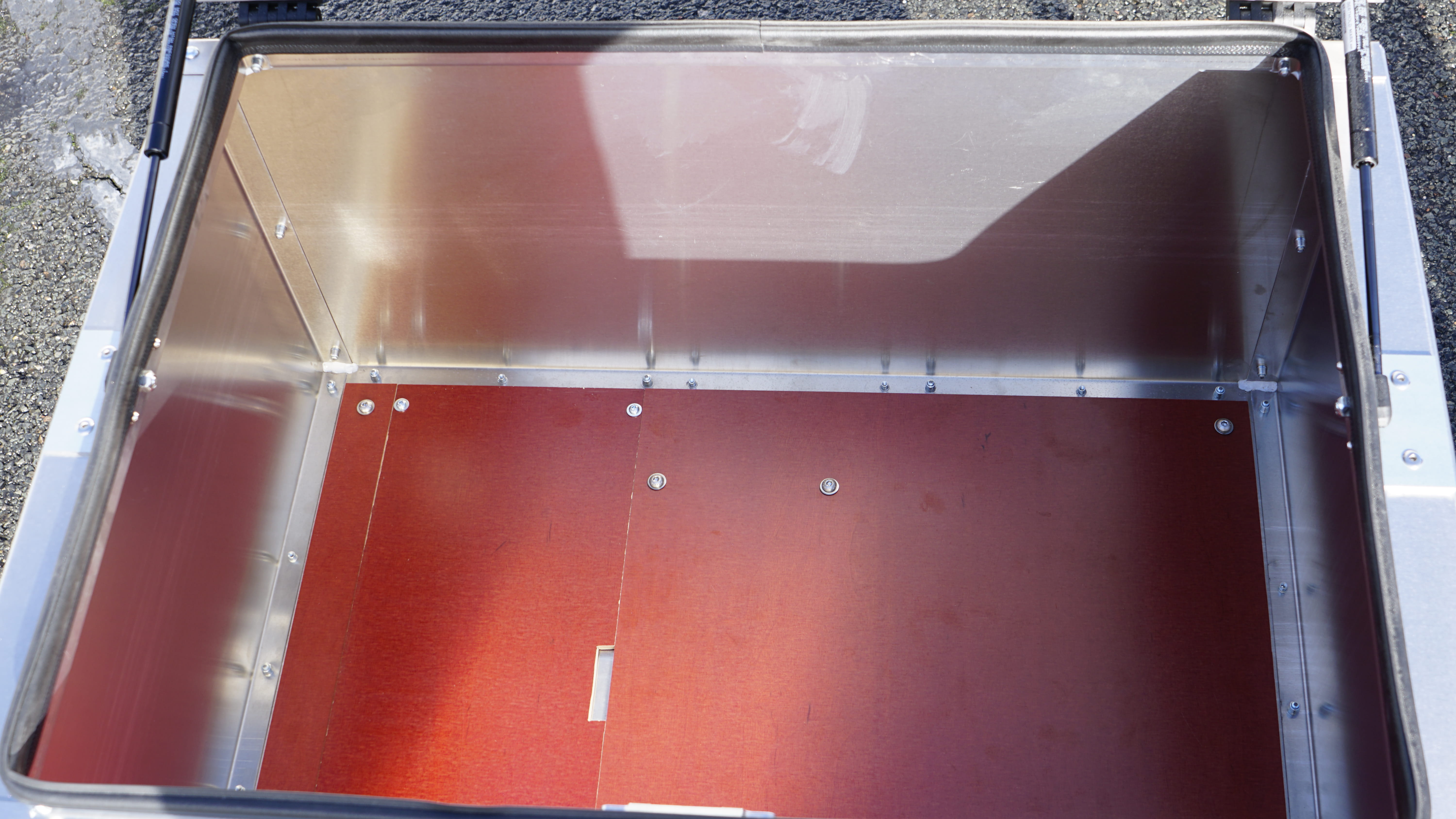

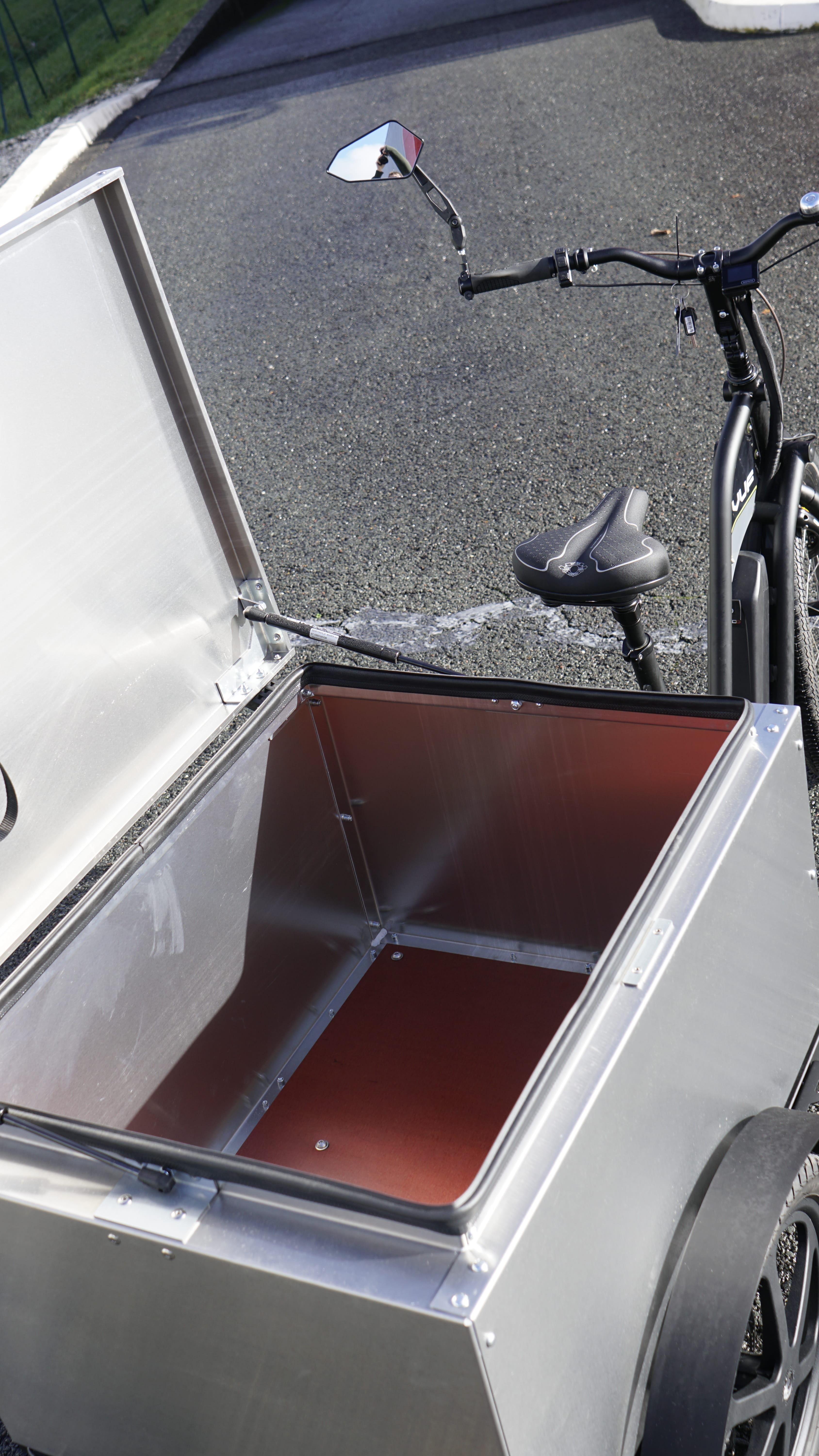

Box design (ALU 300L)

• Features: ultra-compact, secure aluminum box, ideal for daily transport of small parcels or mail.
• External box dimensions: 0.927 m (length) x 0.670 m (width) x 0.500 m (height).
• Internal box dimensions: 0.924 m (length) x 0.667 m (width) x 0.492 m (height).
• Access and openings: loading through a large hatch with a clear opening of 791 mm long by 600 mm wide.
• Cargo security: locking by mechanical key lock.

Cycle parts and chassis

• Frame and fork: made of 4130 chromoly steel with a 15 mm axle. The fork is rigid.
• Drivetrain: reinforced chains designed for cargo bikes and a heavy-duty differential for maximum durability.
• Wheels: 24-inch spoked front rims. 20-inch aluminum mag rear wheels. The front hub is a dedicated cargo hub.
• Tires: 24x2.5 front tire. 20x3.0 rear tires.
• Braking: high-performance hydraulic system. 2-piston front brake with 203 mm disc. Dual hydraulic calipers at the rear (2 pistons, 203 mm disc).

Ergonomics, equipment and accessories

• Cockpit: 6061 aluminum handlebar (31.8 mm diameter, 760 mm width) with adjustable stem. Equipped with ergonomic grips.
• Comfort: "Confort +" saddle and a very low 450 mm step-through for effortless mounting and dismounting, ideal for deliveries with many stops.
• Safety and visibility: adjustable wide-angle mirrors included. The lighting system includes a 12 V dynamo front light, a brake light and turn signals (on the casing, box or frame).
